Honda Marine
Honda BF20DK2

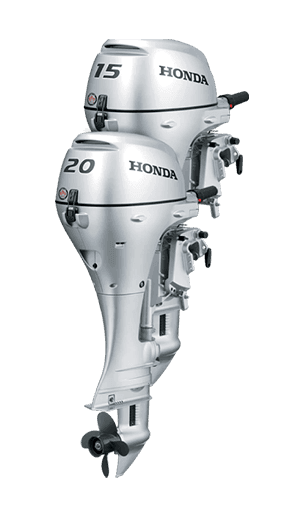

Honda BF20DK2 LRTJ Outboard Motor
20HP
Contact for Current AvailabilityConfirm specification before ordering. Specification published by Honda Marine against the BF20 family designation. This record is the BF20DK2 market variant, which Honda does not specify separately — the suffix denotes market and model year, not a different engine. Figures taken from the BF20 record, not from a sheet published for this code. We will confirm the specification in writing before quoting.
Technical specification
- Manufacturer
- Honda Marine
- Model
- BF20DK2
- Horsepower
- 20 HP
- Engine type
- Four-stroke
- Valvetrain
- SOHC, 4 valve
- Displacement
- 350 cc
- Cylinder configuration
- 2 Cylinder
- Bore × stroke
- 59 mm x 64 mm (2.3 x 2.5 inches)
- Full throttle RPM
- 5,000–6,000 rpm
- Fuel induction
- 1 Carburetor
- Starting system
- Electric/Recoil
- Trim & tilt
- Power Tilt (available)
- Alternator output
- 12 A
- Gear ratio
- 2.08:1
- Transom heights
- S Type: 381 mm/15 inches; L Type: 508 mm/20 inches
- Dry weight (published)
- S-Type: 47 kg/104 lbs.; L-Type: 50 kg/110 lbs.
- Fuel type
- Unleaded petrol
Configurations
5 catalogued builds. Shaft length, rotation, start type and control type all change which parts fit.
International specification
5 builds| Model code | Shaft | Rotation | Start | Control | Weight | Availability |
|---|---|---|---|---|---|---|
| BF20DK2-LHGJ | Not specified | Standard | Not specified | Not specified | — | Contact for Current Availability |
| BF20DK2-LHSJ | Not specified | Standard | Not specified | Not specified | — | Contact for Current Availability |
| BF20DK2-LRJ | Not specified | Standard | Not specified | Not specified | — | Contact for Current Availability |
| BF20DK2-LRTJ | Not specified | Standard | Not specified | Not specified | — | Contact for Current Availability |
| BF20DK2-XHSJ | Not specified | Standard | Not specified | Not specified | — | Contact for Current Availability |
Shaft length is not published for every configuration in this range. Where it reads “not specified”, the manufacturer code in the Model code column carries it — send us the code and we will confirm the shaft length before quoting rather than guess it.
These are international specification units. They are not supplied as United States-specification engines, and United States emissions eligibility must be confirmed separately before import or sale.
Market specification & emissions
- Emissions classification
- Not recorded
- EPA engine family
- Not recorded
- California (CARB)
- Not evaluated — confirm before order
- Warranty territory
- Confirmed at quotation
We do not infer emissions eligibility from a model designation. Where a value reads “not recorded” or “not evaluated”, we hold no documented evidence for that configuration and will confirm it before quoting. An international-specification engine is not a United States-specification engine, and a United States-specification engine is not automatically California eligible.
Complete repower packages
Engine, propeller, controls, steering, gauges, harnesses, key switch and rigging accessories, specified together and quoted as one package.
