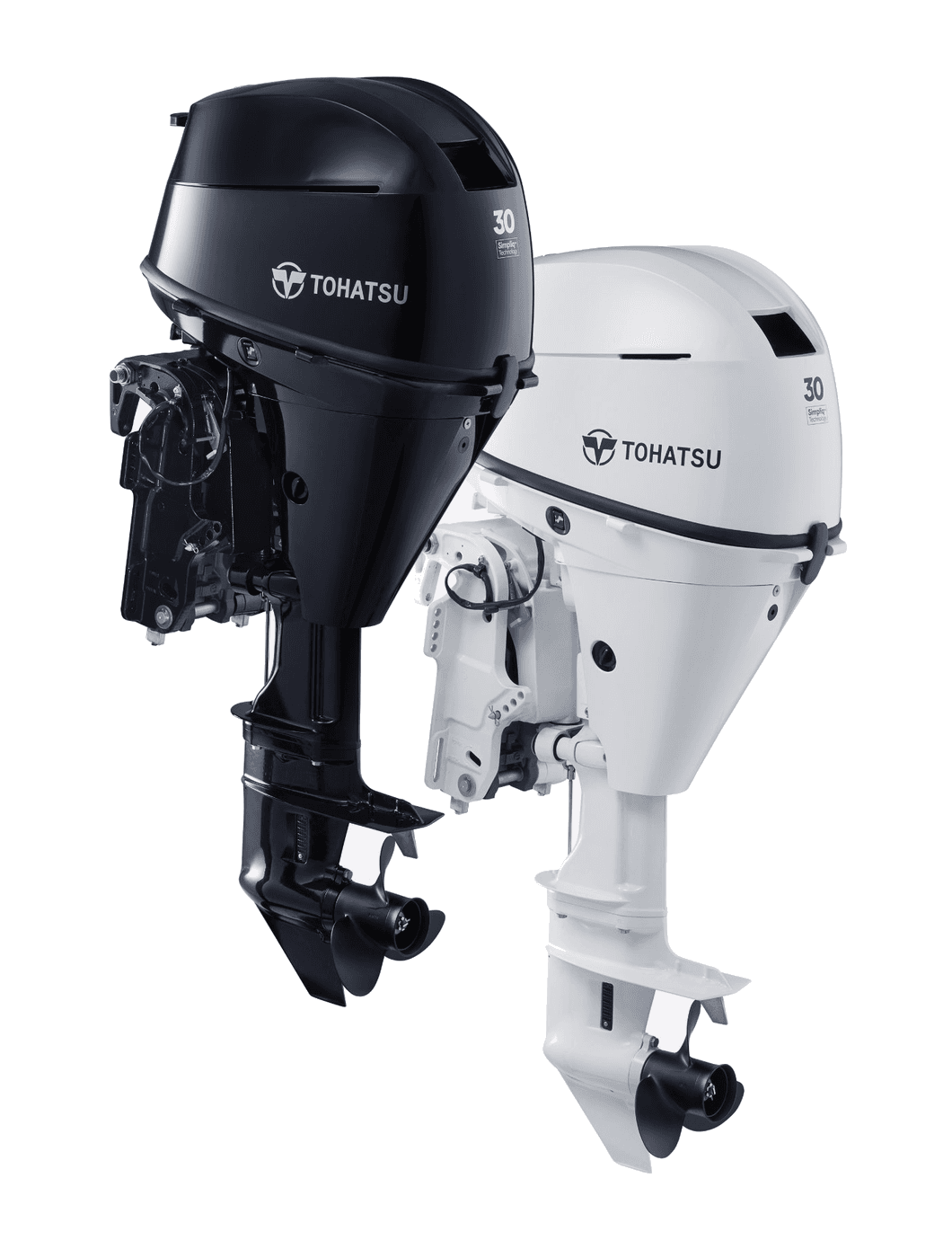

Tohatsu MFS30D
30 PS four-stroke outboard, 3 Cylinder, 500 cc, international specification
30PS
Contact for Current Availability
Technical specification
- Manufacturer
- Tohatsu
- Model
- MFS30D
- Series
- Mid-Range MFS
- Horsepower
- 30 PS (22.1 kW)
- Engine type
- Four-stroke
- Displacement
- 500 cc
- Cylinder configuration
- 3 Cylinder
- Bore × stroke
- 61 x 57 mm (2.4 x 2.25 in)
- Full throttle RPM
- 5,500–6,500 rpm
- Fuel induction
- Electronic Fuel Injection
- Starting system
- Electric or Manual
- Controls
- Remote Control or Tiller Handle
- Trim & tilt
- Power Trim and Tilt (option)
- Alternator output
- 12V, 210W, 17.5A
- Gear ratio
- 2.17:1 (12:26)
- Transom heights
- 15", 20"
- Dry weight (published)
- 58 kg (128 lbs.)
- Fuel type
- Unleaded petrol
- Recommended fuel
- Unleaded Gasoline (87 Octane)
- Engine oil
- NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
- Engine oil capacity
- 1.7 L
Configurations
0 catalogued builds. Shaft length, rotation, start type and control type all change which parts fit.
Market specification & emissions
- Emissions classification
- Not recorded
- EPA engine family
- Not recorded
- California (CARB)
- Not evaluated — confirm before order
- Warranty territory
- Confirmed at quotation
We do not infer emissions eligibility from a model designation. Where a value reads “not recorded” or “not evaluated”, we hold no documented evidence for that configuration and will confirm it before quoting. An international-specification engine is not a United States-specification engine, and a United States-specification engine is not automatically California eligible.
Complete repower packages
Engine, propeller, controls, steering, gauges, harnesses, key switch and rigging accessories, specified together and quoted as one package.
