Tohatsu · Two-Stroke

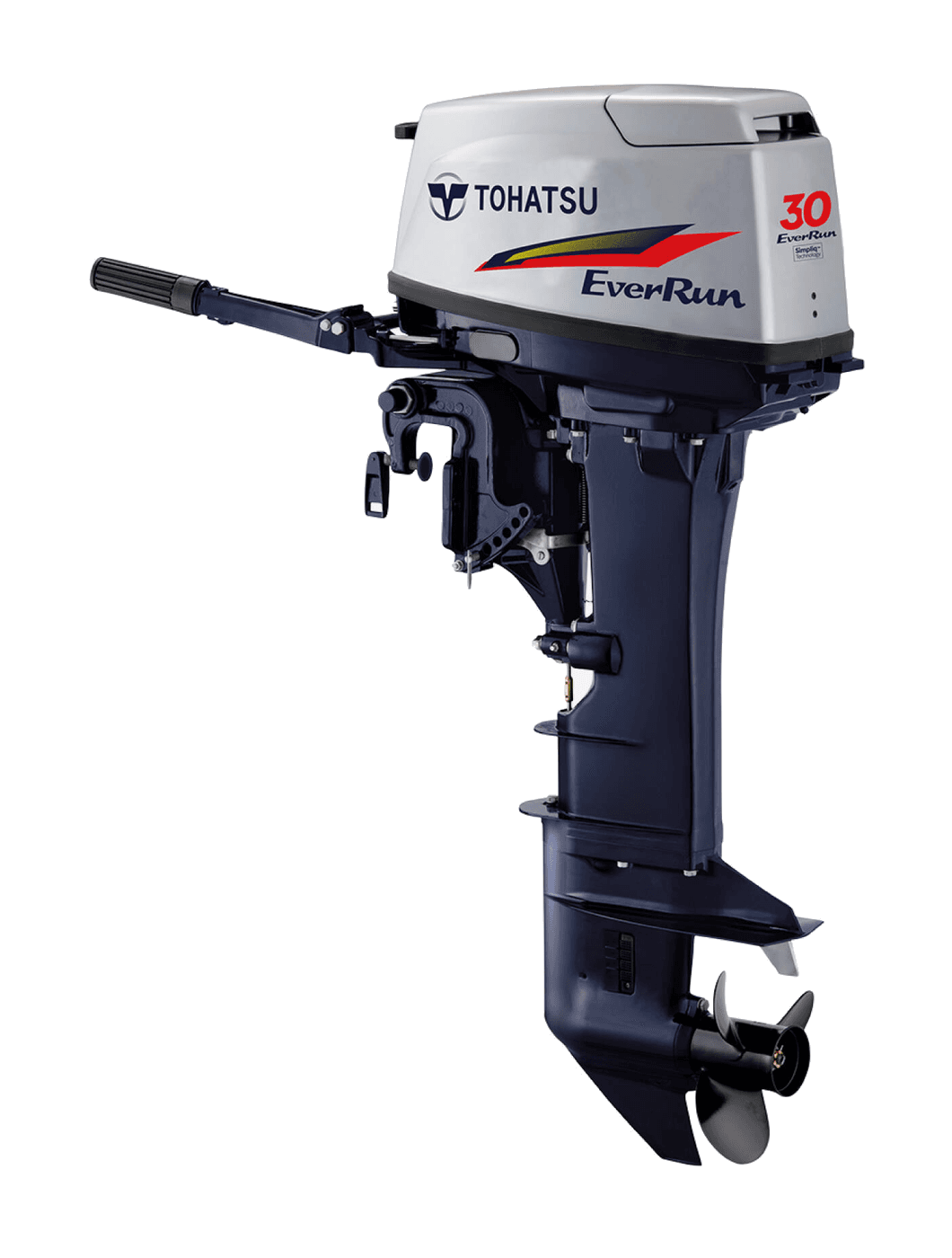

Tohatsu MX30H
30 PS two-stroke outboard, 2 Cylinder, 429 cc, international specification
30PS
Contact for Current Availability
Technical specification
- Manufacturer
- Tohatsu
- Model
- MX30H
- Series
- Two-Stroke
- Horsepower
- 30 PS (22.1 kW)
- Engine type
- Two-stroke
- Displacement
- 429 cc
- Cylinder configuration
- 2 Cylinder
- Bore × stroke
- 68 x 59 mm (2.68 x 2.32 in)
- Full throttle RPM
- 5,150–5,850 rpm
- Starting system
- Manual
- Controls
- Tiller Handle
- Alternator output
- Optional: 12V, 80W, 7A
- Gear ratio
- 1.92:1 (12:23)
- Transom heights
- 15", 20"
- Dry weight (published)
- 51.0 Kg (112 lbs.)
- Fuel type
- Unleaded petrol
- Recommended fuel
- Unleaded Gasoline (87 Octane)
- Engine oil
- Genuine recommended 2stroke engine oil (TCW-3)
Configurations
0 catalogued builds. Shaft length, rotation, start type and control type all change which parts fit.
Market specification & emissions
- Emissions classification
- Not recorded
- EPA engine family
- Not recorded
- California (CARB)
- Not evaluated — confirm before order
- Warranty territory
- Confirmed at quotation
We do not infer emissions eligibility from a model designation. Where a value reads “not recorded” or “not evaluated”, we hold no documented evidence for that configuration and will confirm it before quoting. An international-specification engine is not a United States-specification engine, and a United States-specification engine is not automatically California eligible.
Complete repower packages
Engine, propeller, controls, steering, gauges, harnesses, key switch and rigging accessories, specified together and quoted as one package.
